What is LSSV?
This is nothing more than an abbreviation for Legato Single Server Version which a special NetWorker version which is delivered with the Oracle database software. This is something that Oracle implemented nearly a decade ago.
Installing LSSV

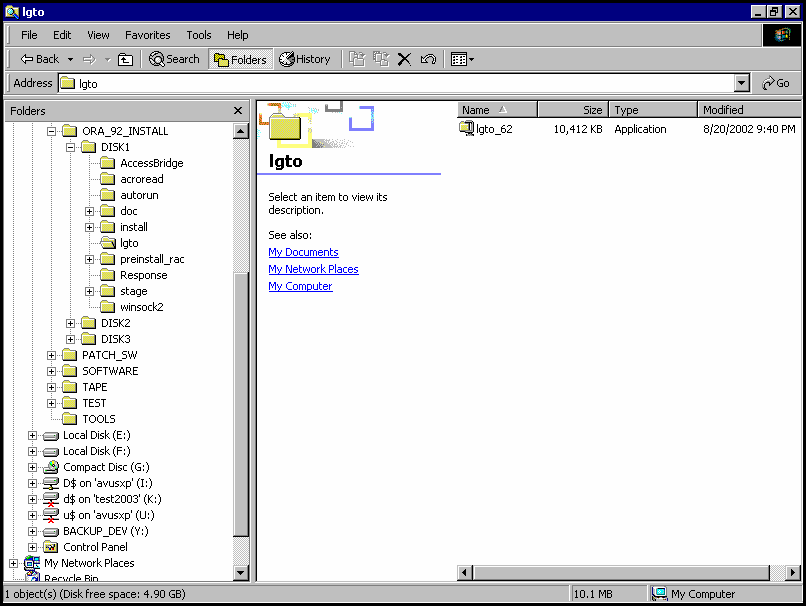

You will see the first hint when you browse through the directory structure of your Oracle CD - this example shows the directory of a downloaded Oracle 9.2i version for Windows.
![nw-lssv](/content/public/media/networker/nw-lssv-2.png)
The name of the compressed file already points to the NetWorker 6.2 version.
Before you can install the software, you have to unpack the file to a temporary directory. To install the software, simply run the program setup
:
![nw-lssv](/content/public/media/networker/nw-lssv-3.png)
This of course only works if no other NetWorker version is already installed. Otherwise you will receive this message:
![nw-lssv](/content/public/media/networker/nw-lssv-4.png)
The installation procedure does not differ from a ‘normal' NetWorker installation process. However, not all NetWorker programs will be installed - as you can see below, the NetWorker User program icon is missing:
![nw-lssv](/content/public/media/networker/nw-lssv-5.png)
If you start the NetWorker Administrator program, you will realize what LSSV stands for:
![nw-lssv](/content/public/media/networker/nw-lssv-6.png)

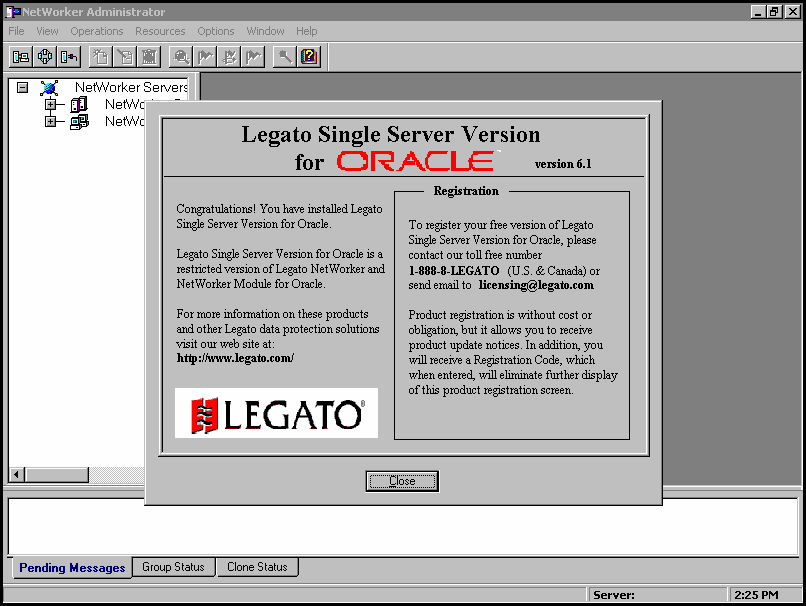

As you can see, this version is a free NetWorker version - the version number points to NetWorker 6.1:
![nw-lssv](/content/public/media/networker/nw-lssv-7.png)
If you open the Registration resource, you can verify that there is an enabler code automatically installed ... and it has even been automatically authorized:
![nw-lssv](/content/public/media/networker/nw-lssv-8.png)
Even the clients' Save set has automatically been preconfigured - by default it will not backup anything else but the NetWorker resource database - such has been implemented in NetWorker 6.2:
![nw-lssv](/content/public/media/networker/nw-lssv-9.png)
Although the About command does not really point to a specific NetWorker version:
The name of the compressed file already points to the NetWorker 6.2 version.
![nw-lssv](/content/public/media/networker/nw-lssv-10.png)
The Server resource also does not show any more details:
![nw-lssv](/content/public/media/networker/nw-lssv-11.png)
Besides the name, this version has just limited capabilities as you can see from this screeenshot:
![nw-lssv](/content/public/media/networker/nw-lssv-12.png)
Although the images already speak for themselves, you need to go to this URL to receive a clear written statement:
http://www.oracle.com/technology/deploy/availability/htdocs/faq.html#A251
- Q? How does Legato LSM differ from Legato NetWorker ?
- The MML bundled with Oracle8 is not the full version. The bundled version includes support for backups to a maximum of four directly connected tape devices. It does not support backups across a network or autochangers and is limited to a maximum of four streams to the four devices.
LSSV License details
And these are the license details for the enabler code:
C:\Program Files\nsr\bin> nsrcap -nvv -c fa577c-a16e3f-d26553 Read an enabler: name: Legato Single Server Version (manufactoring code unknown) enabler code: fa577c-a16e3f-d26553 (2610#000021156) license type: l28 demo days: 45 days nsrcap: License enabler code is valid. C:\Program Files\nsr\bin> nsrlic -v connecting to test2000 ... nsrlic: License Summary: nsrlic: Available: sv=1, ws=0, clu=0, clu_nt=0, clu_unix=0, clu_linux=0 nsrlic: Borrowed: sv_borrowed=0, clu_borrowed_nt=0, clu_borrowed_unix=0, // clu_borrowed_linux=0 nsrlic: Remaining: sv=1, ws=0, clu=0, clu_nt=0, clu_unix=0, clu_linux=0 nsrlic: server test2000 does NOT have Self-Identifying capability. SERVER (UNIVERSAL) CLIENT LICENSES Available: 1 Used: 0 Borrowed from Server: 0 Remaining: 1 Connected Clients: ; WORKSTATION CLIENT LICENSES Available: 0 Used: 0 Remaining: 0 Connected Clients: ; CLUSTER CLIENT LICENSES Available: 0 Used: 0 Borrowed from Cluster for NT: 0 Borrowed from Cluster for UNIX: 0 Borrowed from Cluster for LINUX: 0 Remaining: 0 Connected Clients: ; ..... ..... NT CLUSTER CLIENT LICENSES Available: 0 Used: 0 Remaining: 0 Connected Clients: ; UNIX CLUSTER CLIENT LICENSES Available: 0 Used: 0 Remaining: 0 Connected Clients: ; LINUX CLUSTER CLIENT LICENSES Available: 0 Used: 0 Remaining: 0 Connected Clients: ; IBM DYNIX/ptx: 0 AIX: 0 Darwin (Mac OS/X): 0 Digital UNIX: 0 HP UX: 0 HP MPE: 0 Linux: 0 NetWare: 0 Network Appliance: 0 CLIENT PAKS: none; CLIENT TYPES ALLOWED: Windows 3.1x client, Windows 95 client, Windows NT Server client, Windows NT Workstation client; C:\Program Files\nsr\bin>
